Which Westinghouse refrigerator model uses the genuine WF1CB-RG100?

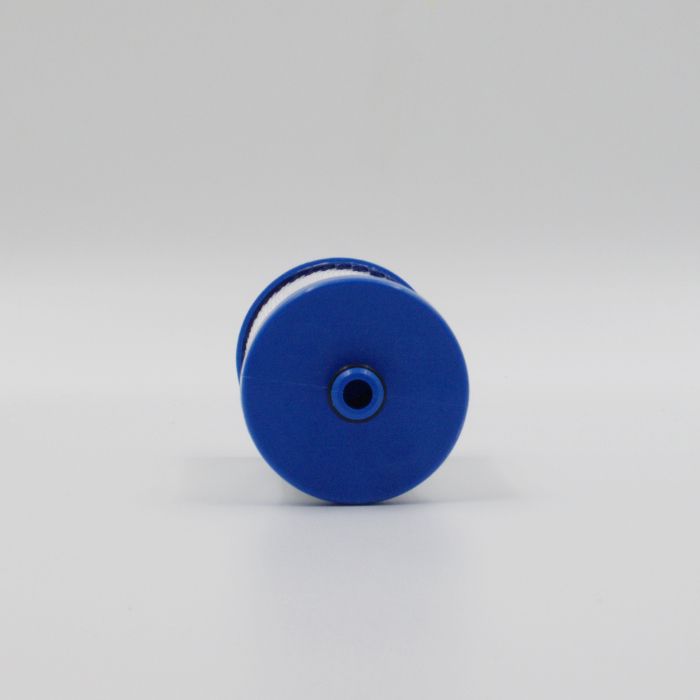

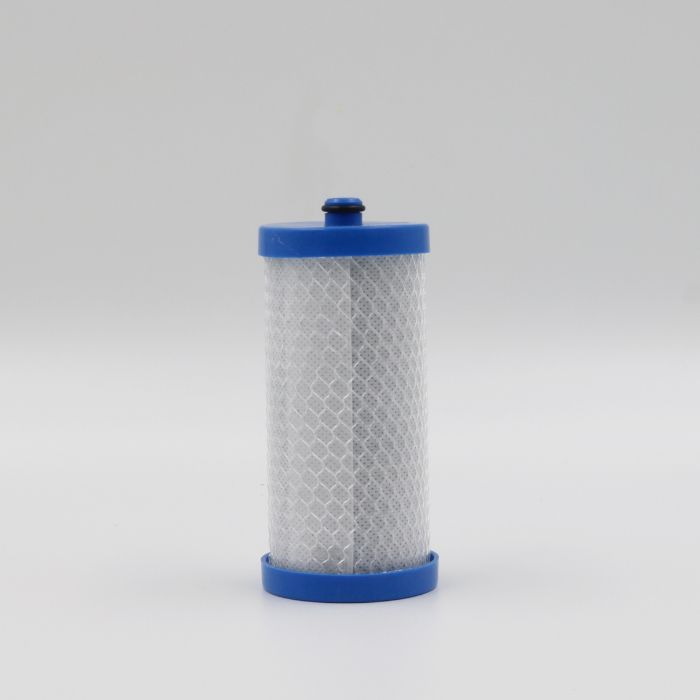

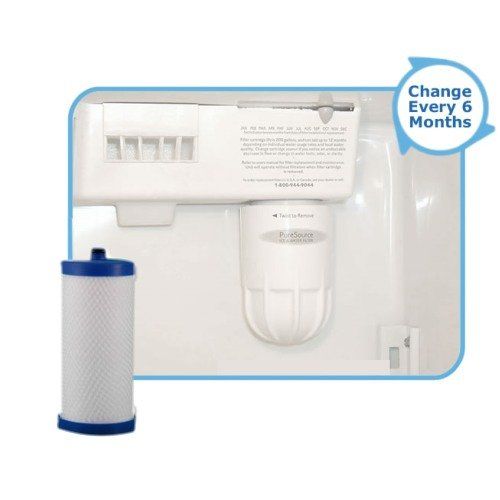

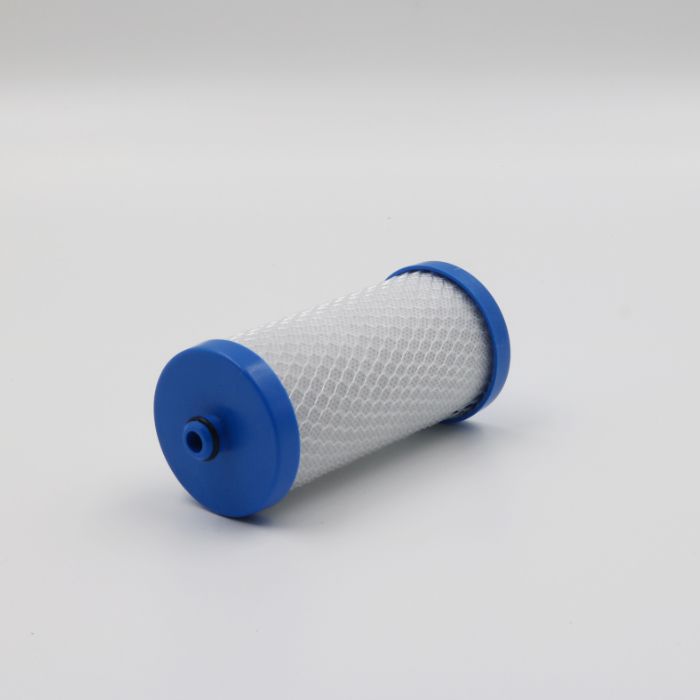

This cartridge is the genuine Westinghouse WF1CB-RG100 fridge filter for Westinghouse and Electrolux fridges. This filter is located in a round plastic housing inside the fridge. The filter cartridge sits inside of a white plastic cup and you will need to unscrew the cup before you can see the filter.
Which Westinghouse fridge water filters can be replaced by the WF1CB-RG100?
Sometimes referred to as the Puresource fridge filter, the following can be swapped out with this filter: Electrolux 1438545 and Westinghouse RS643T, WSF-1 & WSF-2. WF1CB-RG100 is a quality replacement for Stefani fridge filter SGF-1CB-SW.
Other filters that may be replaced include:
RF100, RG100, NGRG2000, RF-100, RG-100, NGRG-2000, 218994101, 218717805, 240389101 , 240389102, 240394501, SWF1CB, WFB, Sears Kenmore 9910, 469910, 46-9910, 9910P Compatible Water Filter
What makes having a Westingouse Fridge Filter so beneficial?
the WF1CB filter removes the following impurities from your drinking water:
96.5% of Chlorine and 98.3% of particles of rust, sand, dirt and sediment (5 to 15 microns in size). It is also reported to improve the clarity of the water. This filter does NOT remove beneficial Fluoride. Changing the filter regularly in your ice/water refrigerator also reduces the build-up of scale in your ice-making mechanism thereby reducing the need for costly services. Overall, it provides better tasting and smelling water with improved clarity. The WFCB cartridge is tested and certified by NSF International to meet or exceed NSF/ANSI Standard 42.
How long should my Westinghouse Fridge Water Filter last?
Refrigerator manufacturers strongly recommend that fridge water filters be replaced at least every 6 months or when the "change filter" light comes on. However, if you notice the clarity or taste of your water changing, that's the best indication that it's time for a change! A routine 6 month change-out cycle ensures that your water stays fresh and your refrigerator's ice & water mechanisms are protected from corrosion.
Technical specifications:
- Flow Rate: 1.9 Lpm
- Operating Temperature: Min 0.6°C/Max 38°C
- Operating Pressure: Min 20 psi/Max 100 psi
- Technology: High quality Carbon Block
- Capacity: 1,514 Litres (400 Gallons)
- Service Life 6 months
Dimensions: Length: 11.4cm (4.5") x Diameter: 5cm (2")
How do I install my new water filter?
- Unscrew the filter cup and discard the water.
- Pull the old filter straight down and discard.
- Place the new filter in the filter cup. The end of the filter with the small o-ring should be up.
- The end of the filter with the small o-ring should be up.
- Screw the filter cup (with filter) up onto the housing . The filter will self-align as the cup is tightened.
- Reset your "change filter" light (if your fridge has one).
Resetting your "change filter" light:
Press and hold the reset button on the dispenser until the green light flashes (up to 15 seconds).
- HAV402E, HCA44 031, HCS44 031, HDA454FALPW, HAV402EAL, HCA454AL, HCS46 001, HDA454FPW, HCA394FKA, HCA454PW,
- HCV451, HNMF3905AP-8, HCA394FKPW, HCA454PWX, HCV451S, HNMF3905APL, HCA404PW, HCA455FKPW, HCV452E, HNMF3906AP
- HCA404PWALU HCA46 001 HCV452EAL HNMF4508AAP HCA44 011, ESM6470SA, ESM6470WA, ESM6477SA, ENL6098W3 (92501013003)
- ENL6298K3 (92501012303), ERL6296KK0 (92501018800), ERL6296W0 (92501018200), ERL6296XX2 (92501019002)
- ENL62981KS1 (92501013801) ENL6298KK1 (92501016301), ERL6296KK10 (92501018000), ERL6296W10 (92501019601)
- ERL6296XX3 (92501019003) ENL62981KS3 (92501013803), ENL6298KS1 (92501016401),ERL6296KK13 (92501018003)
- ERL6296W3 (92501018203), ERL6296XX4 (92501019004) ENL62981KX1 (92501013901), ENL6298KX (92501012400)
- ERL6296SK0 (92501018900), ERL6296W5 (92501018205), ERL6296XX5 (92501019005) ENL62981KX3 (92501013903)
- ENL6298KX2 (92501012402), ERL6296SK10 (92501018300), ERL6296XK0 (92501018100), ENL62981XX1 (92501014001)
- ENL6298KX5 (92501012405), ERL6296SK2 (92501018902), ERL6296XK11 (92501018401), ENL62981XX3 (92501014003),
- ENL6298XX1 (92501016501) ERL6296SK5 (92501018905), ERL6296XX0 (92501019000)
- RS645T, RS645T 01, RS643T, RS643T 01, RS643V 10, RS645V 10, RS643V 05, RS645V, RS643V
- N640G, N640G 02, ESM6470WA, ESM6470SA, ESM6477SA
