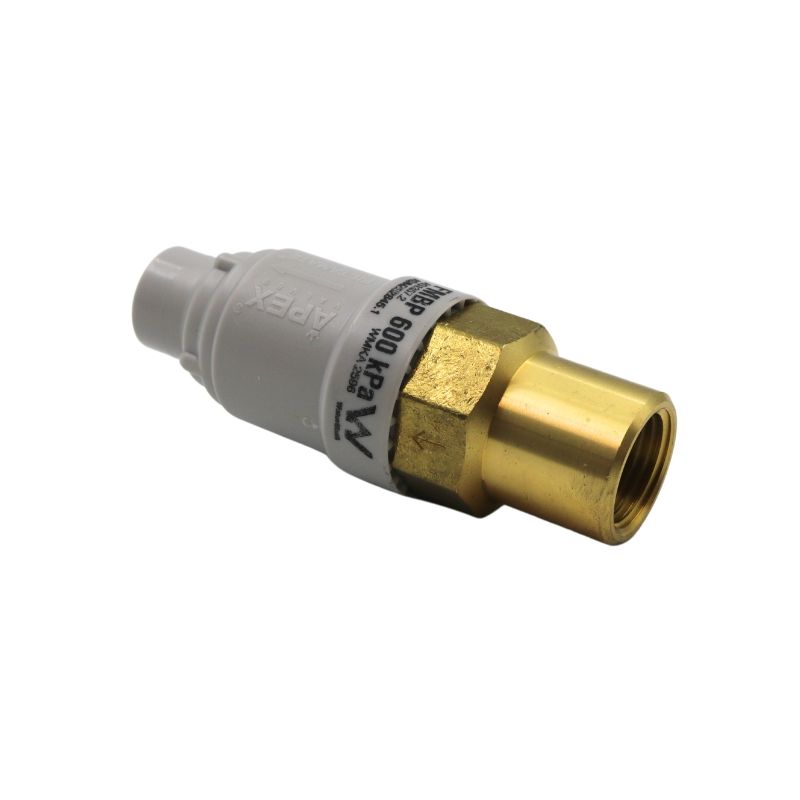

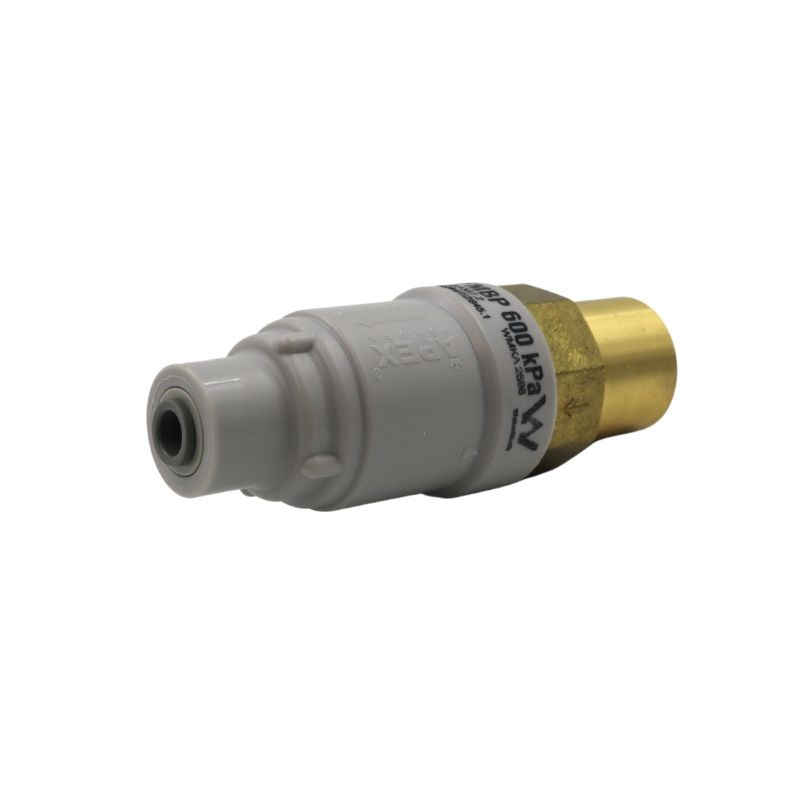

The Apex Pressure Limiting Valve or Pressure Reduction Valve is ideal for applications that have a pressure rating above 600kpa, the Apex Pressure Limiting Valve can be installed to protect downstream components such as:
- Water Filters
- Drink Dispensers
- Ice Makers
- Coffee Machines
- Reverse Osmosis machines
- Mobile homes
- Caravans
Features/ Benefits:
- Integral dual check valves help prevent backflow
- FiltaMate resists water hammer and limits water pressure to filters thus avoiding costly water damage.
- Supplied with fixing clip and screw.
Specifications:
- Inlet and Outlet: 1/4" John Guest push-fit connection Outlet, 1/2" BSP Brass Inlet
- Length: 98mm
- Check Valve: Dual
- Flow Rate: 14 lpm at 700kpa/100psi inlet pressure
- Pressure Ratio: 10:1 (for every 10 kPa [1.5psi] increase in inlet pressure above 1000 kPa [150psi], the outlet pressure will increase by 1 kPa [0.145psi]).
- Outlet Pressures: 350 and 600 kPa (50, 60 and 85psi) +/- 10% @ 1000 kPa (150psi) inlet pressure.
- Maximum inlet pressure - 1600 kPa (230psi)
- Maximum temperature - 40deg C (105deg F)
- Minimum temperature - 1deg C
- Complies with NZS 4608:1992
- Australian Watermark Approval AS1357.2 Lic. 02596
- Australian Watermark Approval AS2845.1 Lic. 21876 (FM, FM 1/2 only)
